AUTEL ULTRA - 2023 Most Intelligent, Advanced 5-in-1 VCMI with Oscilloscope, TSB, Repair Tips/Video Library, Repair Assist, Topology

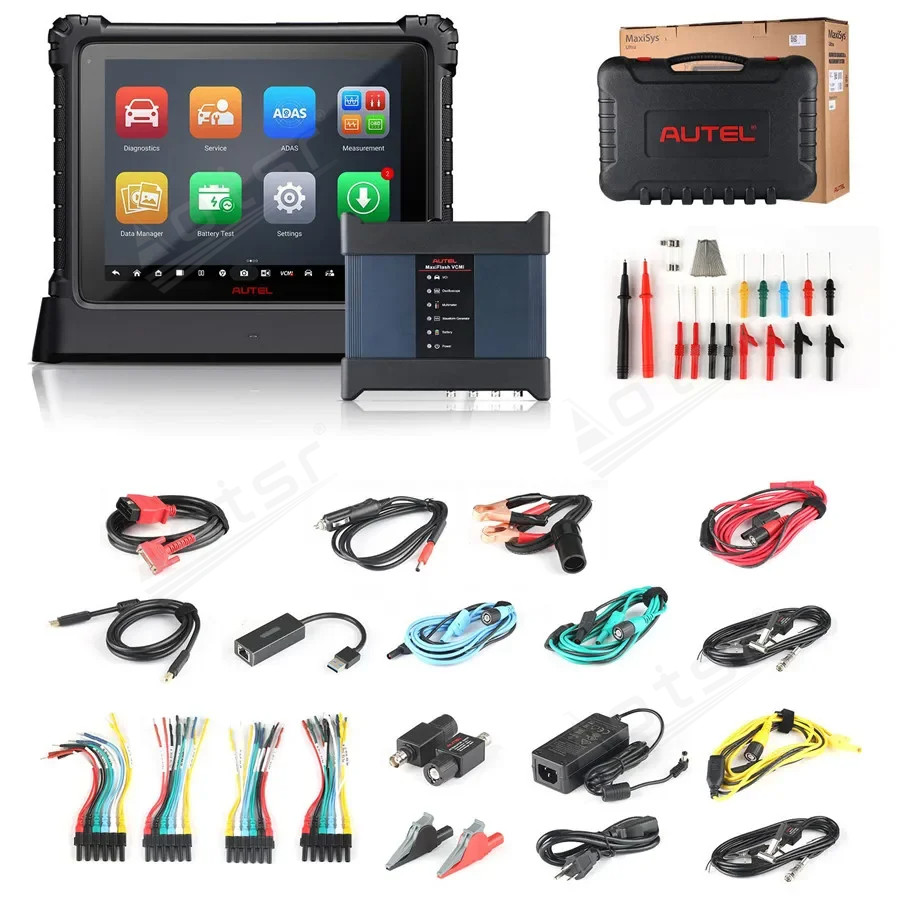

Autel MaxiSys Ultra Automotive Diagnostic Tablet With Advanced MaxiFlash VCMI The MaxiSYS Ultra is Autel's most ambitious diagnostics tablet to date, featuring a 12.9-inch touchscreen Android-based tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU, and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CanBUS tester. The Ultra offers the most advanced approach to vehicle diagnostics with its dynamic topology module mapping for supported vehicles combined with its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations, and Oscilloscope preset guides and tests and waveform library. The Ultra features a rechargeable Lithium battery proving 8 hours of continuous use, a convenient docking station, and front and rear cameras.

MaxiSys Ultra Overview

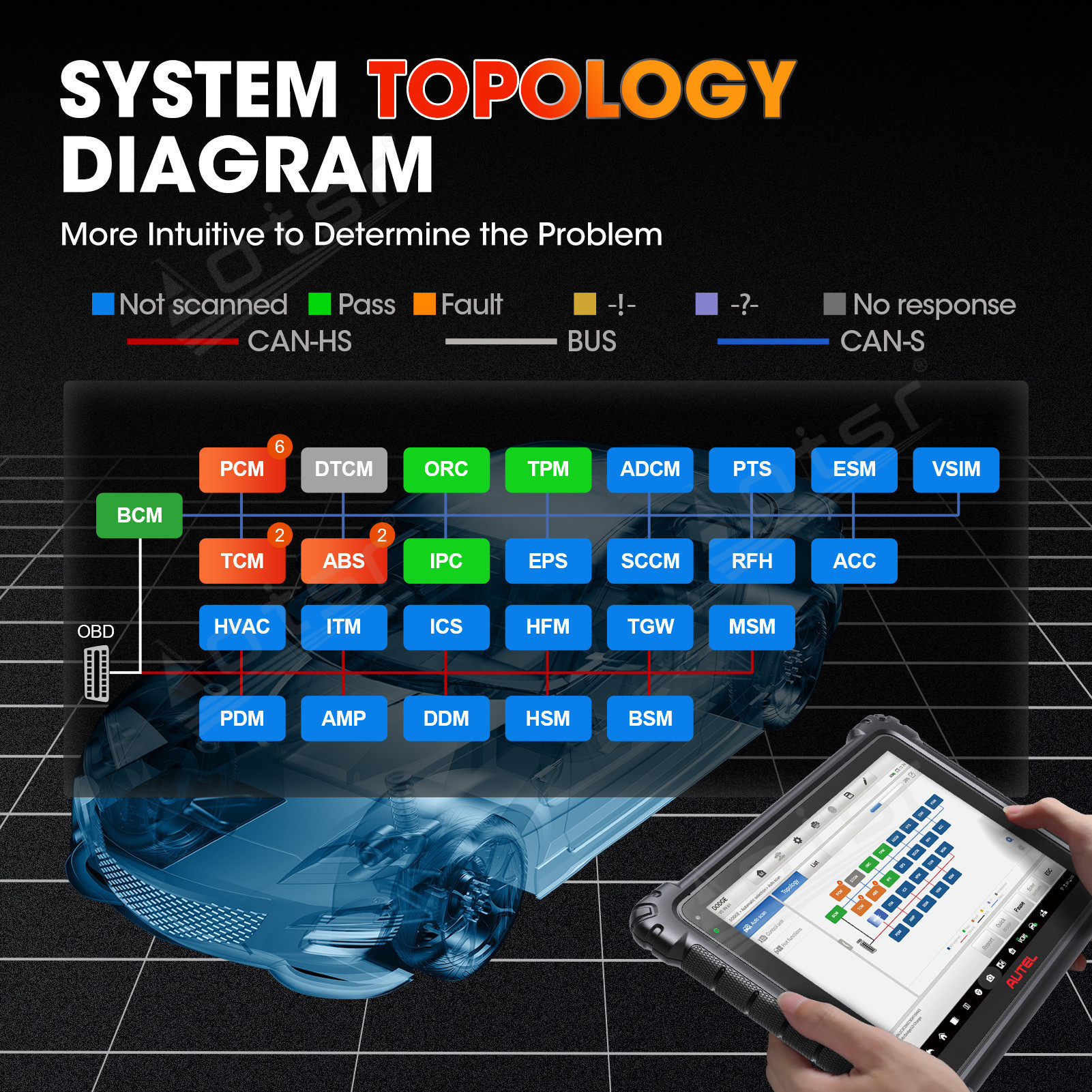

TOP Intelligent Diagnostic - Topology Module Mapping
5-IN-1 VCMI, Valued $2000+ High-End Functions
Advanced ECU coding and programming
40+ Special Service Functions
Bi-Directional Control & All Systems Diagnostics
Automatic system and software updates with real-time push message notifications via internet
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
and so on ......

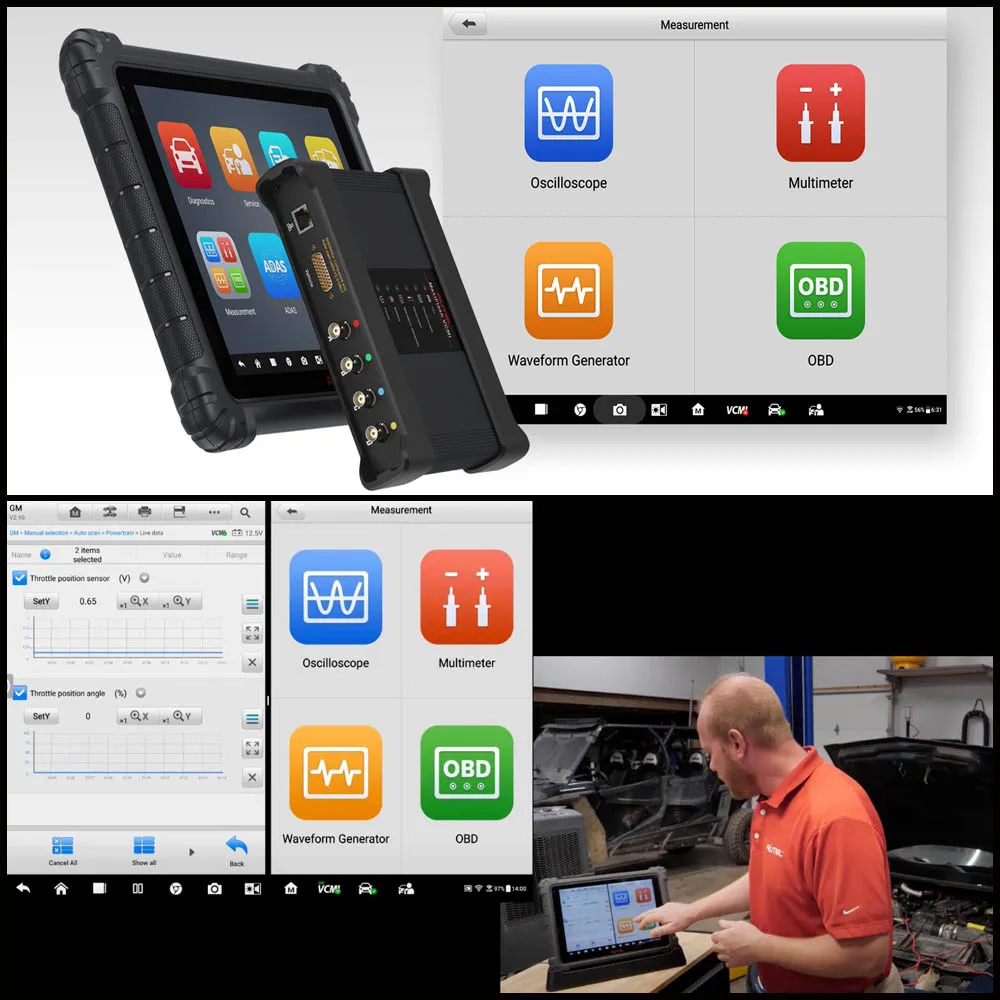

Advanced 5-IN-1 VCMI ( VCI Connection + Oscilliscope + Waveform Gerneator + Multimeter + CAN BUS CHECK )

The VCMI of advanced car scan tool Autel MaxiSys Ultra is integrated with VCI functions + Oscilloscope + Waveform Generator + Multimeter + CAN BUS CHECK, which making the tool has never been so powerful.

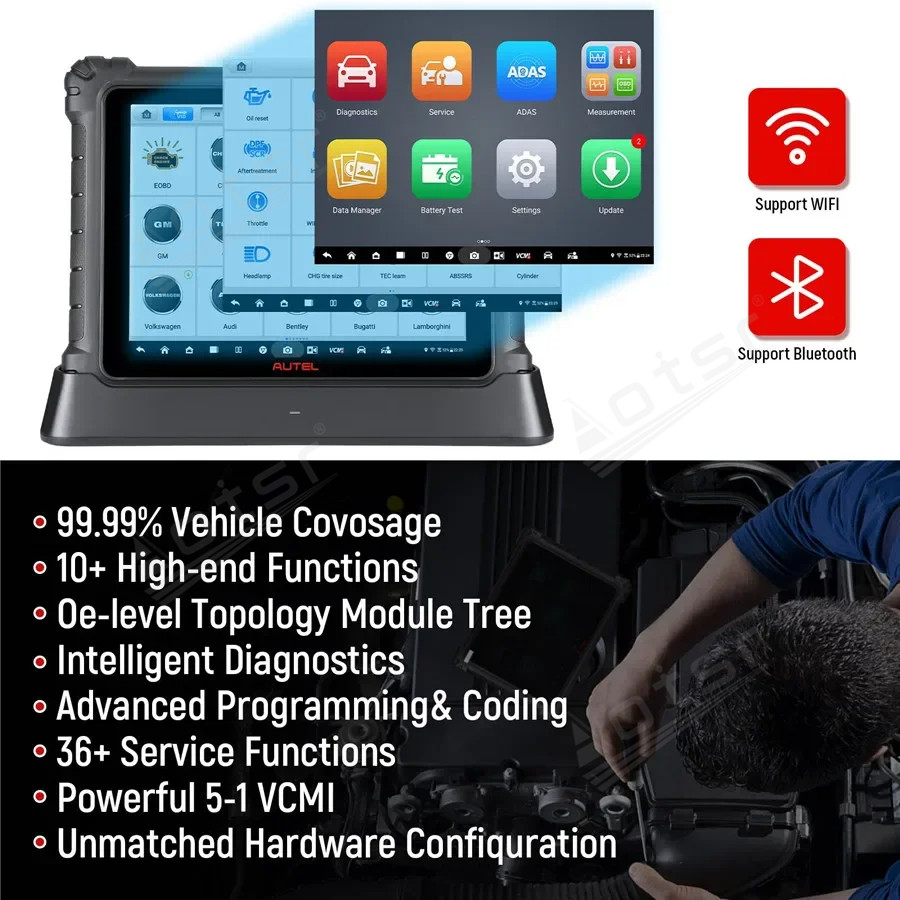

1. VCI Connection (Wi-Fi / BT / USB):
Support Dual Wireless Mode, the new host and communication box are connected through Wi-Fi, Wi-Fi communication transmission speed is faster\more stable\strong anti-interference ability, the actual test wireless distance is more than 50m, and the diagnosis speed is more than 30% faster.

2. Oscilloscope:
VCMI integrated oscilloscope, through 4 major technologies: Large Bandwidth, High Sampling Rate, Deep Storage, Massive Preset Cases, supports 2 major features: Zoom & Playback, Advanced Triggering, improving the efficiency of solving complex faults.

Ultra-Precision: 20MHz large bandwidth, up to 80MS/s sampling rate, accurate waveform acquisition, covering a wide range of vehicles

More Complete: 32M memory, can capture complex signals, amplify and playback waveforms; support advanced edge triggering and pulse triggers, do not miss any key events.

Easy to Use: Built-in massive preset case and waveform library, supplemented by instant help system

PS: Oscilloscope instant help system: After selecting any function on the oscilloscope screen, click the "bulb" icon to instantly locate the corresponding function in the manual.

3. Waveform Generator:
Supports multiple signal modes, including DC voltage, square wave, square wave (X+Y), triangle wave, actuator drive and arbitrary waveform. Simulate the signals of various sensors and ECU modules, you can intuitively judge whether it is a hardware problem without changing parts.

4. Multimeter:
The Multimeter is mainly used to measure voltage, current, resistance, frequency, diode, duty cycle, pulse width and connectivity.

5. CAN BUS CHECK:
By detecting the signal of the OBD interface, you can quickly determine whether the communication status is normal. If the signal is normal, the indicator light will flash; if there is no signal, make sure the pins are set correctly.
