Tesla style Android 10.0 Car Radio GPS Navigation
For Jaguar XF XFL 2016-2018
Car Stereo Head Unit Multimedia Unit
| System | Android 10.0 |
|---|---|
| MCUVER | 8608-CHHWY-F128 Radio Chip NXP6686, AM / FM with RDS |
| RAM & ROM | 4GB DDR3 RAM Memory 64 GB ROM |
| Core number | Hexa Core PX6 |
| Framework | Cortex-A9 32 Bit |
| Resolution | HD 1080*800 or higher/Capacitive 5 Points Multi-Touch/ Dual Zone function 4K ISP Screen |
| SIZE | 10.4 Inch |
| Support | DVR OBD2 DAB+ Rear View Camera Mirror Screen for Android & iphone |
| Built-in WIFI functions | Use hotspot from your smartphone to connect internet Also can built-in Carplay. |
| Amplifier Chip | TDA7850 ; 4*50W max ( Superior sound ) |
| For installation | plug and play ,do not need to cut the dashboard and facial |
| Accessories | GPS Antenna ,gps map .usb adapter,power cable ,audio and video input cable ect |
| Fast Boot time | About 3s , Cold Boot time: about 20-25s |
| OSD Language: |
|
System |
Android10.0 |
|---|---|
| MCUVER | 8608-CHHWY-F128 Radio Chip NXP6686, AM / FM with RDS |
| RAM & ROM | 4GB DDR3 RAM Memory 128 GB ROM |
| Core number | Hexa Core PX6 |
| Framework | Cortex-A9 32 Bit |
| Resolution | HD 1280*800 or higher/Capacitive 5 Points Multi-Touch/ Dual Zone function 4K ISP Screen |
| SIZE | 10.4 Inch |
| Support | DVR OBD2 DAB+ Rear View Camera Mirror Screen for Android & iphone |
| Built-in WIFI functions | Use hotspot from your smartphone to connect internet Also can built-in Carplay. |
| Amplifier Chip | TDA7850 ; 4*50W max ( Superior sound ) |
| For installation | plug and play ,do not need to cut the dashboard and facial |
| Accessories | GPS Antenna ,gps map .usb adapter,power cable ,audio and video input cable ect |
| Fast Boot time | About 3s , Cold Boot time: about 20-25s |
| OSD Language: |
2. Built-in Wifi / Support 3G/4G Network
3. Support Android App download and Google play store
4. Capacitive Multi-touch screen / Resolution HD IPS Screen
5. GPS Navi.
1.Why can't turn on the car radio ?
1.1 Please check the Voltage of car radio : 12V
1.2 Replace the same type of insurance to test the car radio.
Note: Please must use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.
2.Why the car radio will show "No Signal" when we reversing?
Please check if the camera's line is properly connected to the car radio.
Note:The video port of rear camera must insert the "CAMIN" port of car radio.
3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?
Please turn off the "Video Warning" function in the settings,then will be OK.
4.Why can't search FM?
4.1: No radio antenna inserted;
4.2: Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted;
4.3: The signal of your location is not good. Please go to a better place to test again
4.4: The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.
5.Why can't connect the Bluetooth of car radio?
5.1. Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 8861 or ask about us.
5.2. Please try to use another mobile phone to test this function.
All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.
Please don't give us bad reviews and disputes before contacting us. If there is any problem with the product please contact us first, we will help you solve the problem.thank you in advance!
It's a plug-and-play installation, but we recommend that you find a local professional installation engineer or a car A&V store to install our equipment in your car so you can avoid damaging your dashboard and the host itself. Of course, if you need any support, you are free to contact us.

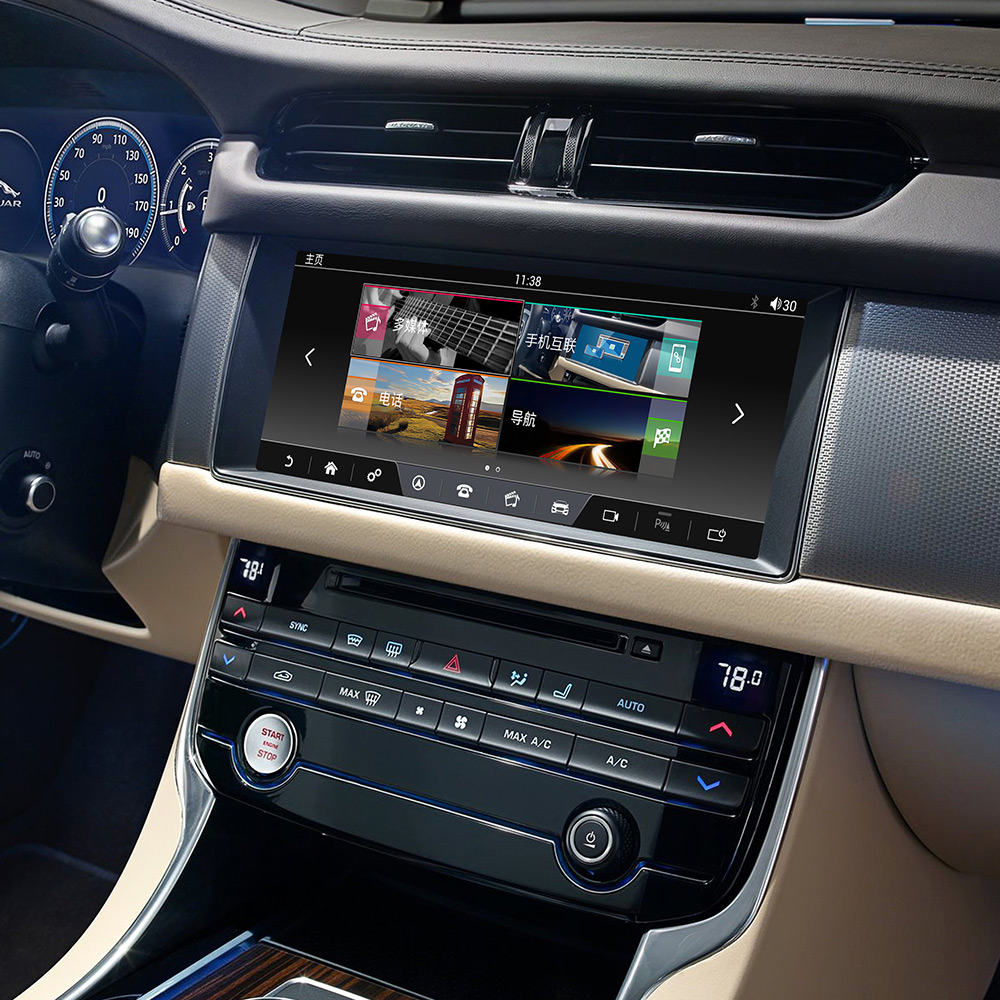

If your car dashboard is the same as in the picture below, then you can purchase it in our
store directly!

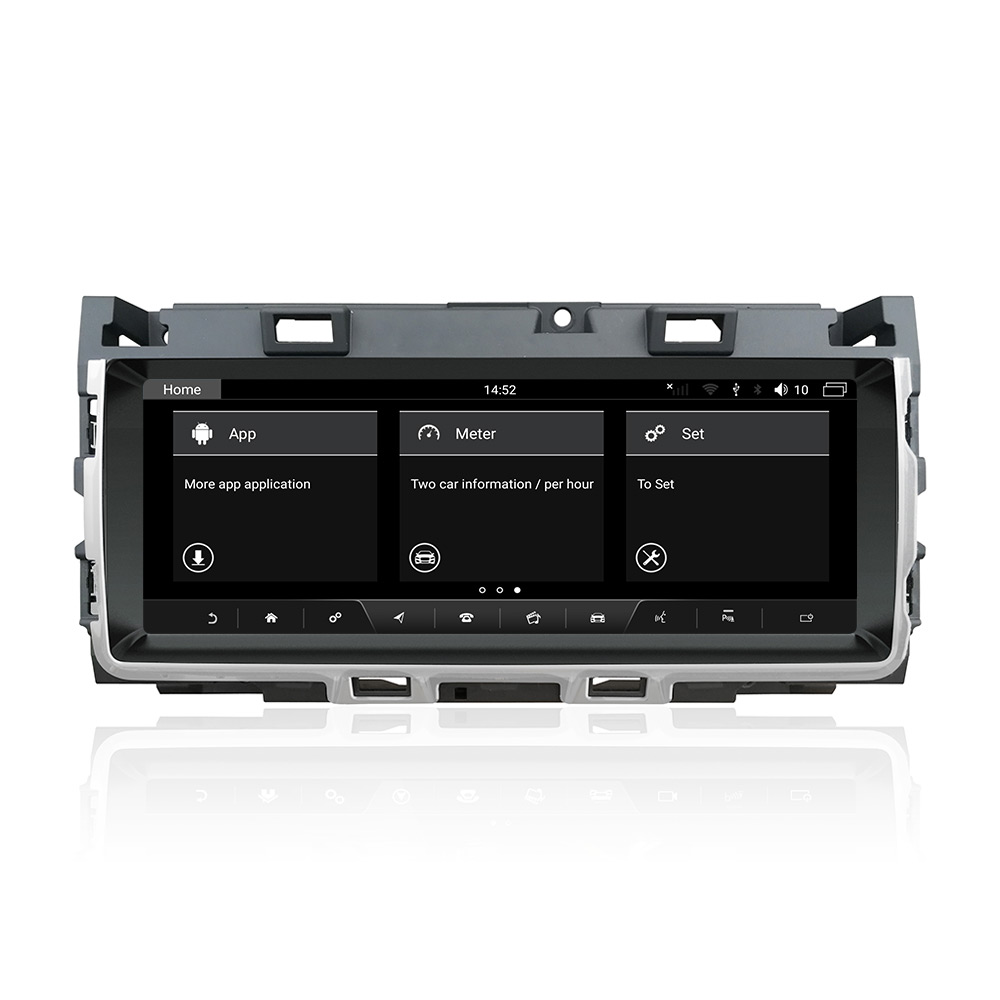

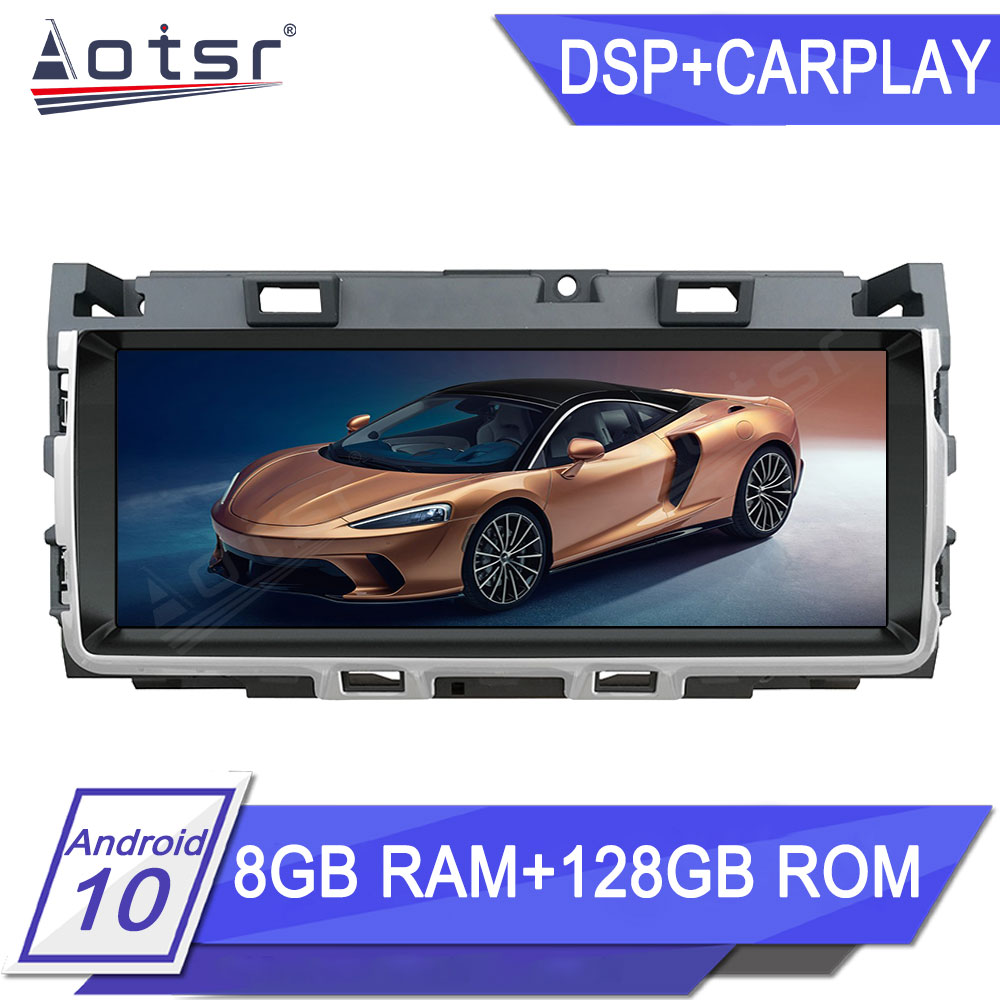

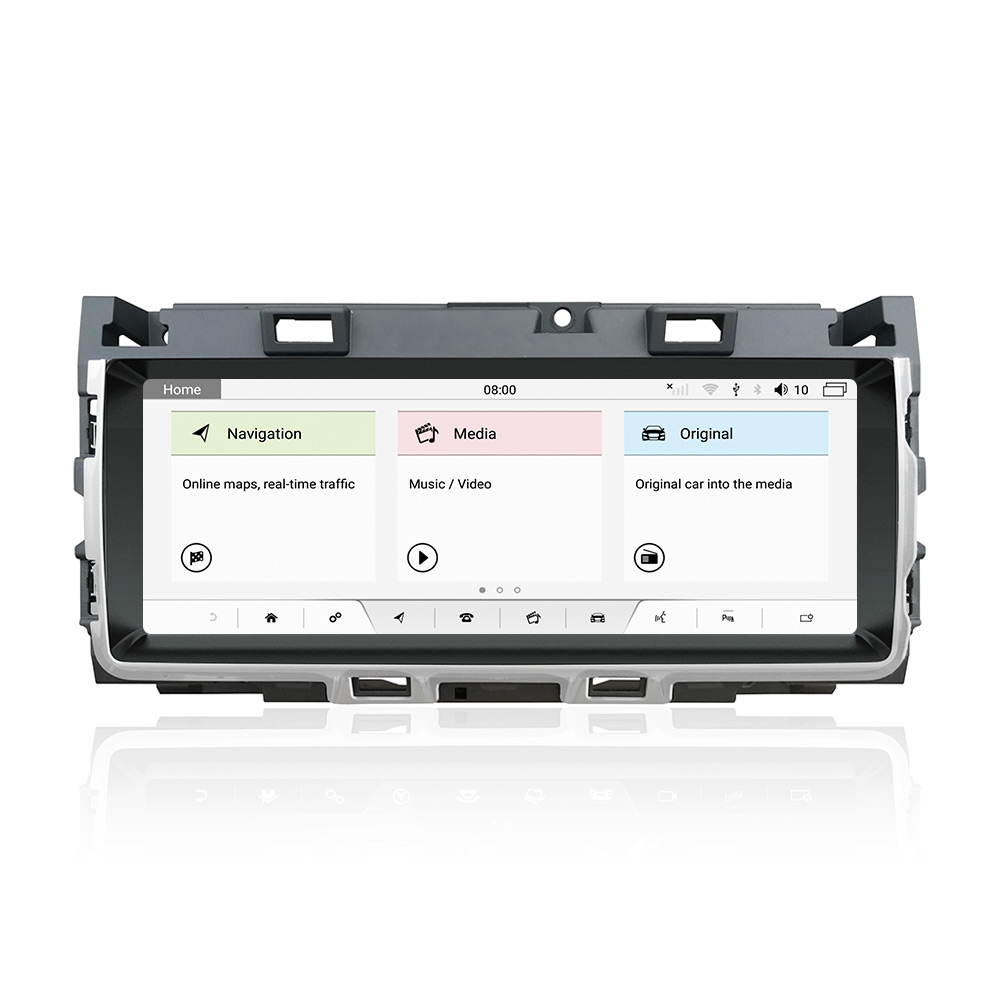

REAL PRODUCT SHOW:
Built-in Carplay
What can Carplay Do? 1:Siri ：You can communicate with the car through Siri, tell the car what to do next, listen to the system broadcast the information received on the mobile phone, and use voice dictation to respond. 2:Touch Screen Dispaly: A Car that partially supports CarPlay will be equipped with a touch screen that can turn on or off applications on a fairly simple home screen. 3:Physical Keys: Car with physical keys is one of the ways to control CarPlay ,volume control and track change control are seamlessly integrated.
Built-in GPS Navigation
Support online and offline navi app, such as Google map, igo map, support 3D Maps and voice guidance. We offer free lifetime map updates.(Support radio/Bluetooth/USB/SD playback while navigating.) Latest maps data for 45 Eastern and Western European countries and POI database. Note: We also have GPS Maps for USA, Canada, Israel, Australia, New Zealand ,UAE and African countries.
UI Interface
Special UI can distinguish from universal UI, easy to touch UI design enables the driver to operate the unit easily and convenience on the road.
Bluetooth 5.0 Lossless Sound Quality
Support TPMS
Need to buy the TPMS separately Can display the temperature and tire pressure with high accuracy to monitor the 4 tires on the screen for safe driving.
Mirror Link
Support wired mirror link with Android phone and iphone Two way interaction between Car DVD and mobile phone. You can control phone from DVD touch screen to play music , game ,making calling and use APP freely etc.
RESOLVING POWER :1920*1080
The 1920*1080 high pixel density provides amazingly vibrant and visual effects while the touch screen offers a remarkably fluid and tuitive operation.
You can download APPS from the Google APPS Store for free
You can now permit the installation of APKs per-source , so hostile downloader apps can not operate without your permission.
Support Split Screens Up and Down
Support split screens up and down, and does not affect passengers watching movies while navigating

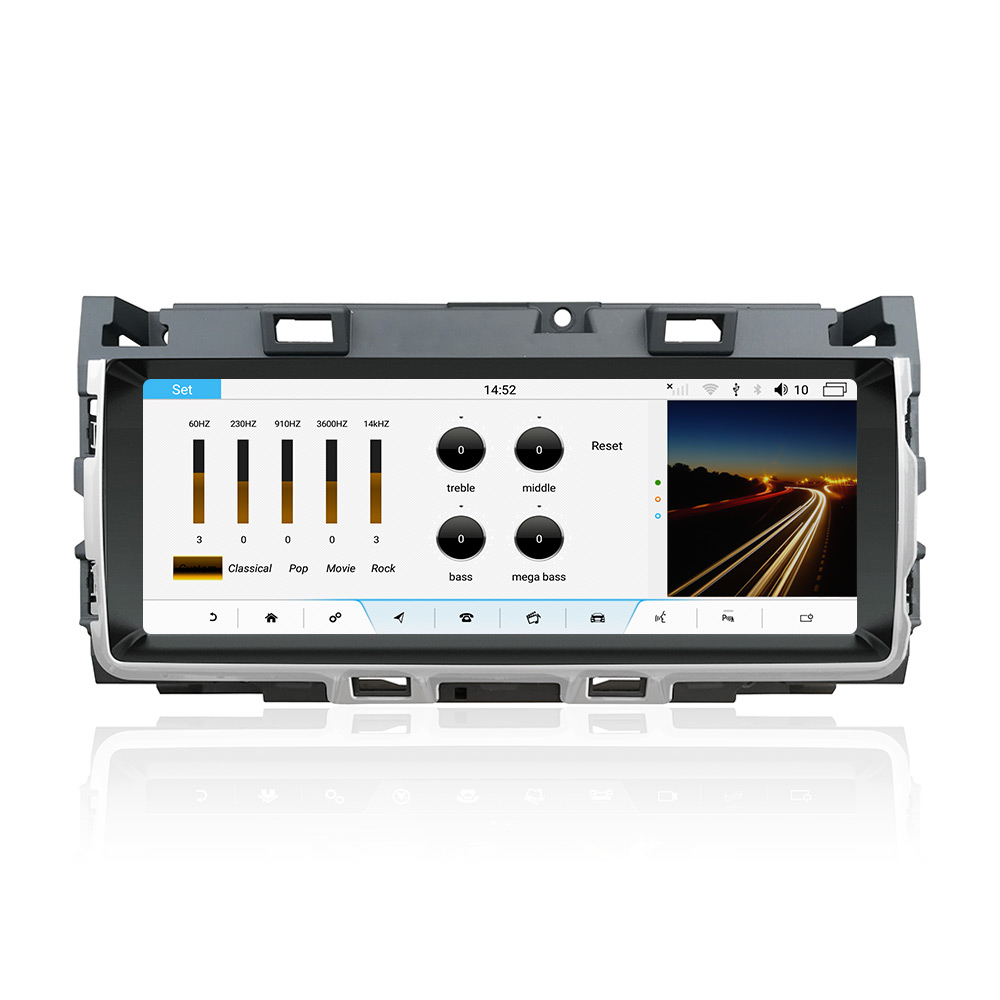

EQ-Build your own sound.
And with the built 4×50W amplification, music sounds clear even volumes. Tailor the sound to your personal preference with the 9-band graphic equalizer.
Support External TV
Support External DVB-T2/DVB-T/ISDB-T Need to buy DVB-T2/DVB-T/ISDB-T separately.
High Definition Multimedia Interface
It is a fully digital video and audio transmission interface that can send uncompressed audio and video signals. HDMI can be used in SET-TOP BOXES , DVD players, personal computers , video game consoles , integrated amplifiers, digital audio and television sets.
FM-AM RDS RADIO
Automatic search +Manual search FM/AM Frequency Pre-set Stations FM 3*6 AM 2*6 FM:65MHZ-74MHZ 87.5MHZ-108MHZ AM:522KHZ-1710KHZ
After-sale
First situation: receiving-checking goods-no damage-sign name to confirm-deal success. Second situation: receiving-checking goods-Damage or wrong products-Taking photos- Submitting certification by shipping company-Send to us-we receiving the package-Return the refund to your account.
Certificate of Aotsr
With the trademark registered in China and EU, the product of Aotsr has certified to CE and RoHS. Please order it without hesitation.
